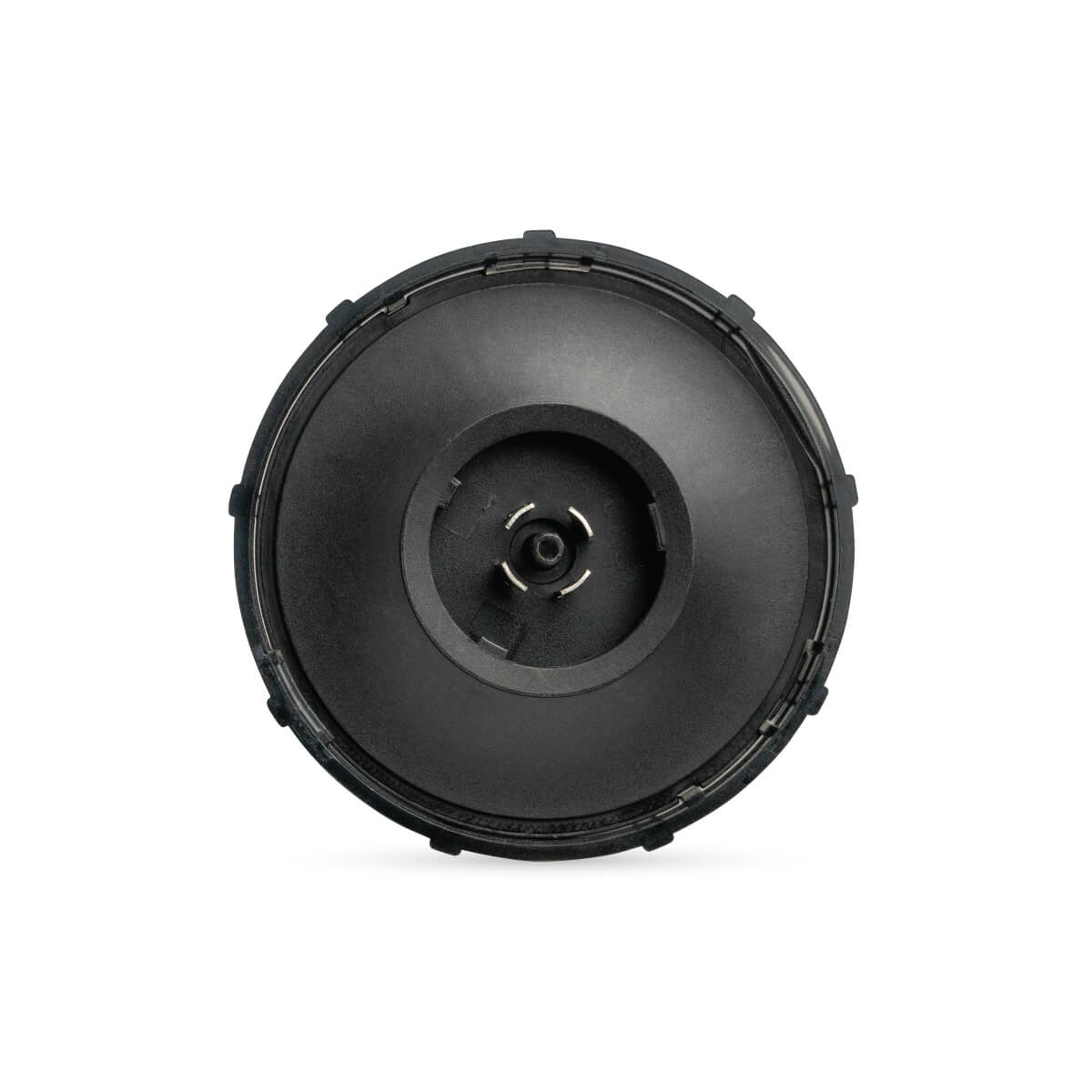

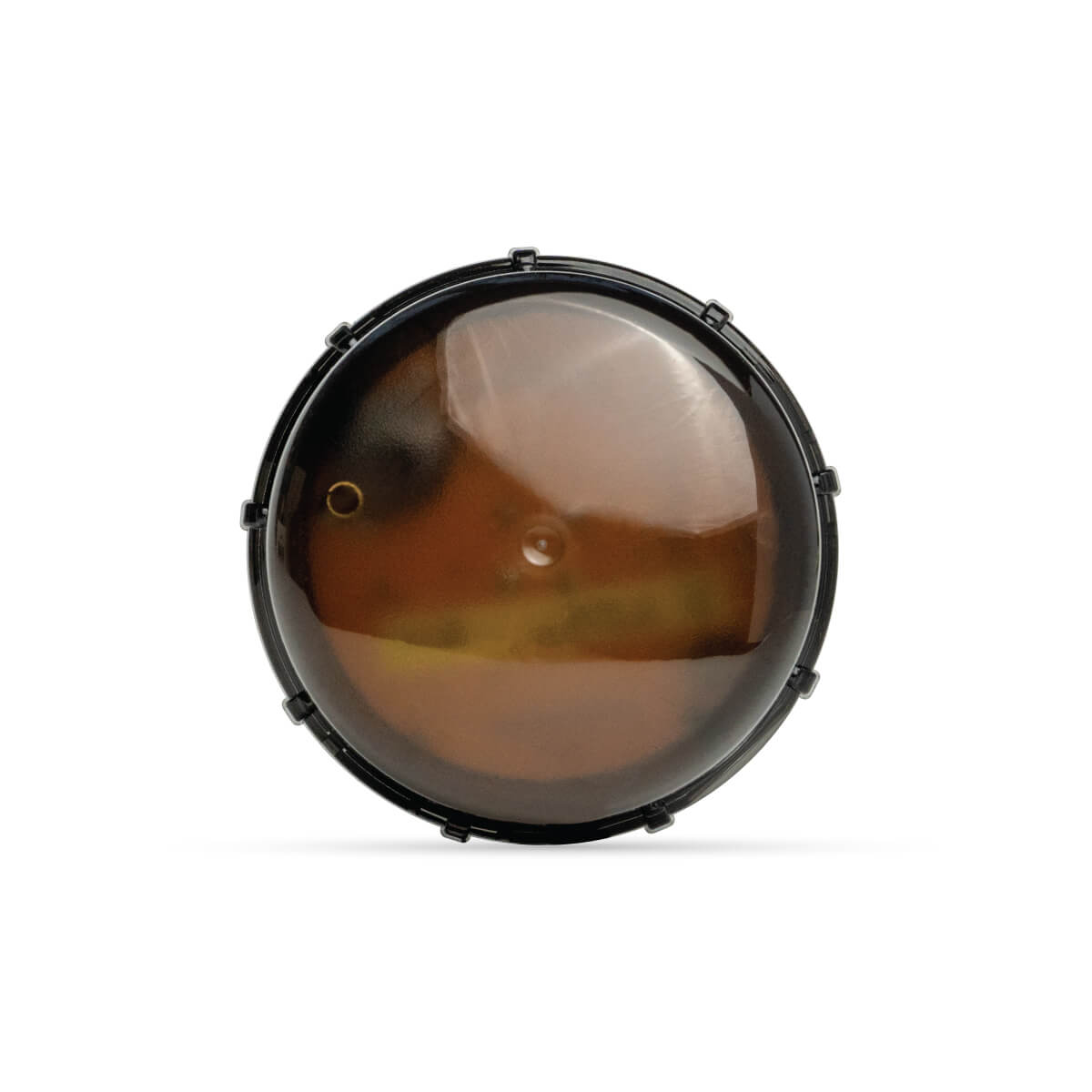

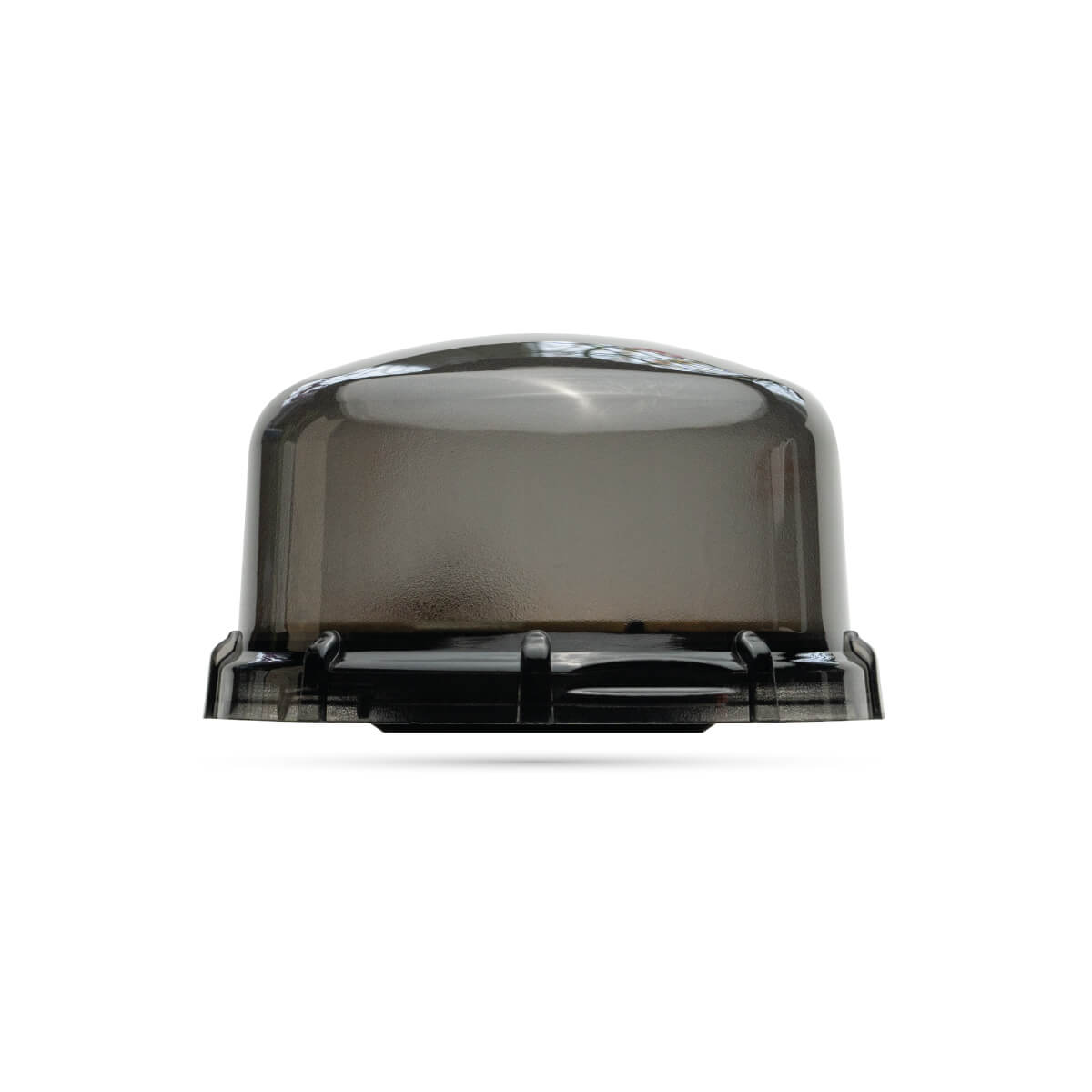

C-NODE ZHAGA IOT is a compact, outdoor luminaire controller that utilizes cellular networks (2G/3G/LTE-M) for direct communication in real-time, eliminating the need for additional gateways. Its plug-and-play installation, in compliance with the industry standard Zhaga Book 18, allows for seamless integration with any vendor. The D4i interface provides detailed data analytics on the luminaire performance directly from the driver. An integrated microwave motion detection sensor ensures efficient illumination, activating only when necessary. Controller's GPS-based autolocation feature streamlines installation and commissioning processes.

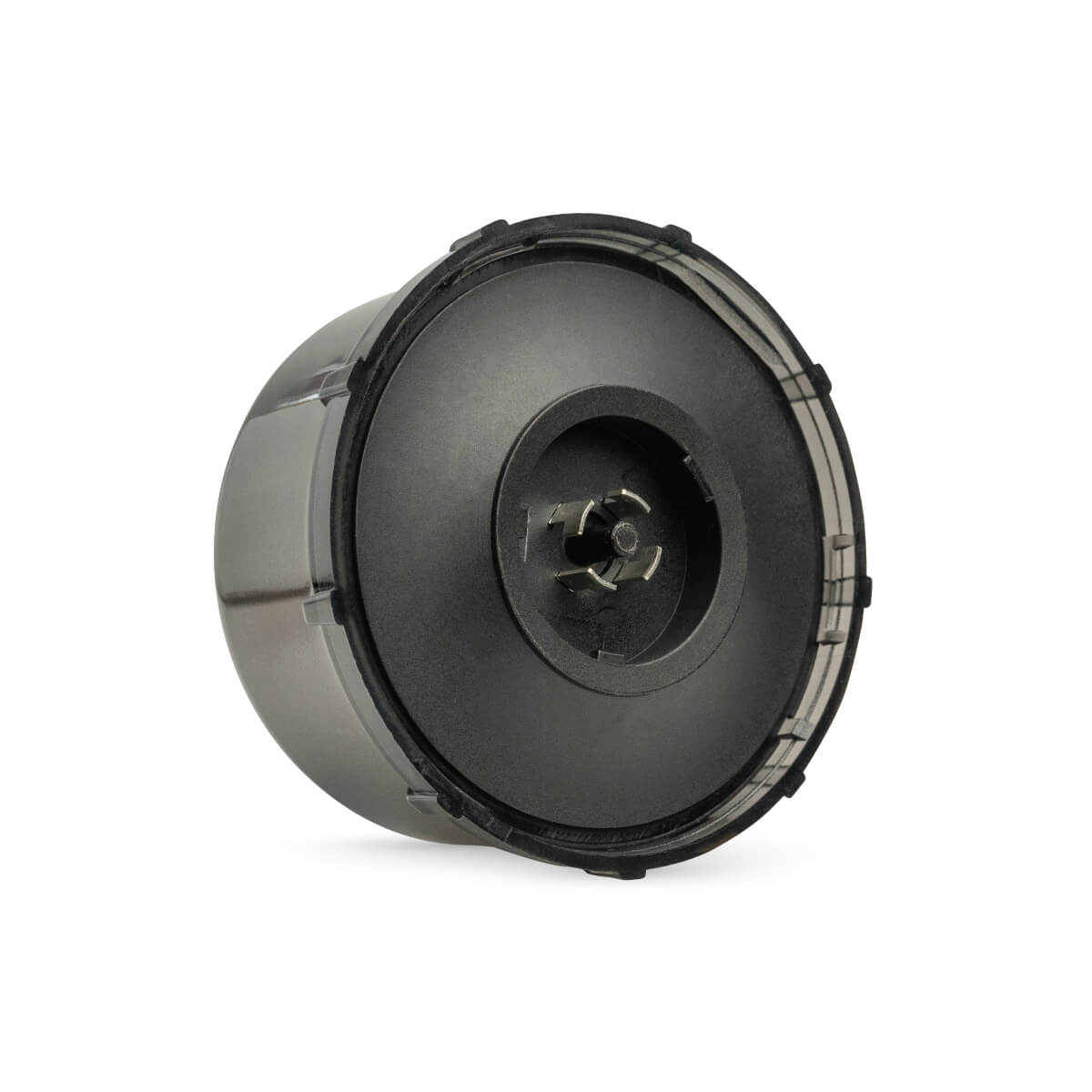

Socket:ZHAGA Book-18 standard
Dimensions and weight:Diameter 80mm, Height 50mm, Weight 88g
Enclosure:Polycarbonate material, UV resistant, Rubber isolation class II
Impact resistance:IK09
IP rating:IP 66
Power supply:24 VDC
Motion sensor type:Radar
Interfaces:DALI 2.0 /D4i /SR
Operating temperature:from -40 °C to +75 °C
• Direct cellular communication, eliminating the need for additional gateways
• Plug-and-play installation in compliance with the industry standard Zhaga Book 18
• D4i interface providing detailed data analytics on luminaire performance
• Integrated microwave motion detection sensor for efficient illumination
• GPS-based autolocation for streamlined installation and commissioning processes.
• Multi-driver management capabilities, allowing for efficient control of multiple drivers
• Multi-endpoint server connectivity, facilitating the integration of the controller into various networks and systems
• External DALI relay control, enabling the controller to interface with DALI-compliant devices
• 24/7 operation schedule
Directive 2014/35/EU Low Voltage Directive (LVD)
EN 62311:2008
EN 61347-1:2015 (IEC 61347-1)
EN 61347-2-11
EN 62368-1:2014/AC:2015
EN 62368-3:2020
HD 60364-4-443:2016
EN 61984:2009
EN 60529
Directive 2014/30/EU Electromagnetic compatibility(EMC)
EN 301 489-1 V2.1.1
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 301 489-3 V2.1.1
EN 301 489-52 V1.1.0
EN 55015:2013+A1:2015
EN 61547:2009
Directive 2014/53/EU Radio Equipment (RED)
EN 300 440 V2.1.1
EN 301 511 V12.5.1
EN 300 328 V2.1.1
EN 300 220-2 V3.1.1
Directive 2011/65/EU RoHS directive
Directive 2012/19/EU WEEE directive
How it works?

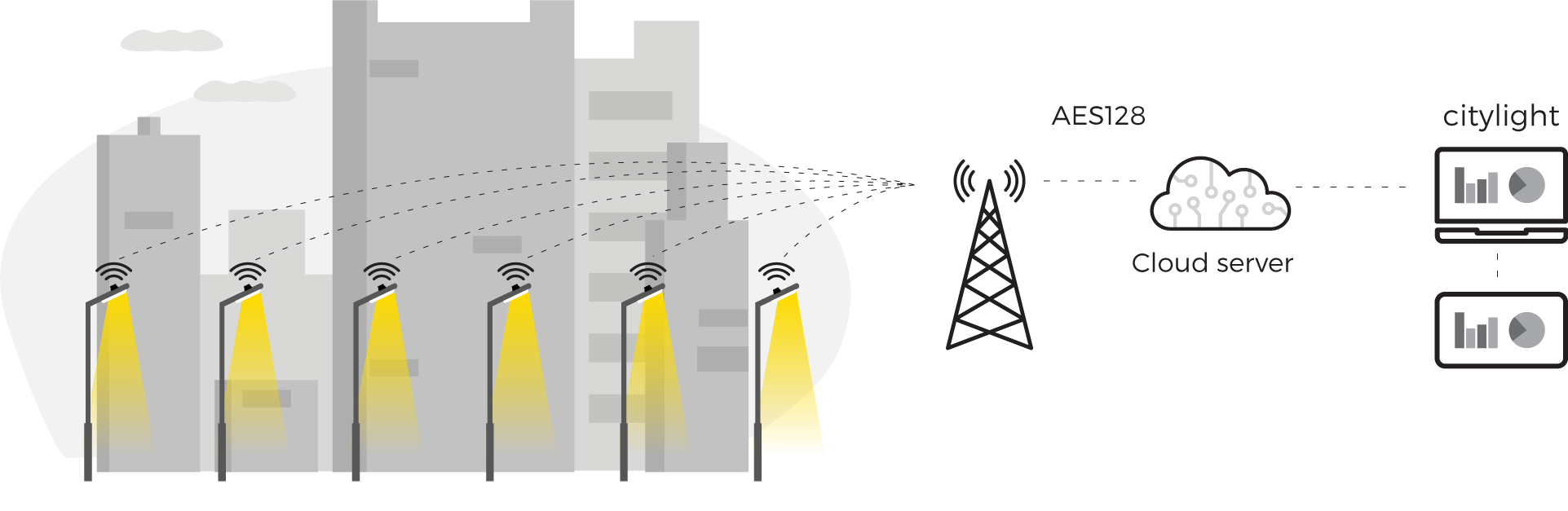

Works with standard 3 GPP cellular network 2G/LTE, no getaways, fallback to 2G/LTE suitable.
How it works?
Additional features
Tilt sensor
Tilt sensor

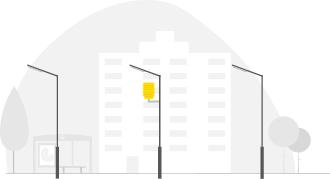

Built-in tilt sensor technology that detects pole knockdowns and alerts the maintenance team.
GPS receiver
GPS receiver

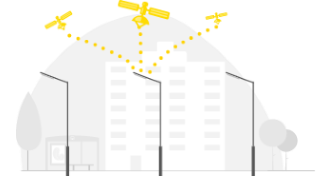

Effortless luminaire controller installation and registration and auto-location.
Motion detector
Motion detector

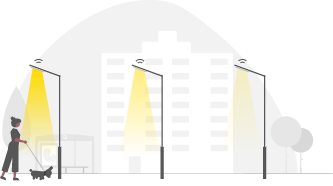

Efficient energy saving through adaptive lighting with dual microwave radar sensors.
DALI Relay
DALI Relay
Control switching ON/OFF times for light decorations or add billboard connected to light pole.
Air Quality sensor
Air Quality sensor
Remote Air Quality Index (AQI) monitoring using connected wireless sensors.
Automatic Meter Reading
Automatic Meter Reading
Remote Utility Meter reading over Wireless M-Bus OMS industry standard protocol.
