CNODE PLC
OVERVIEW
OVERVIEW

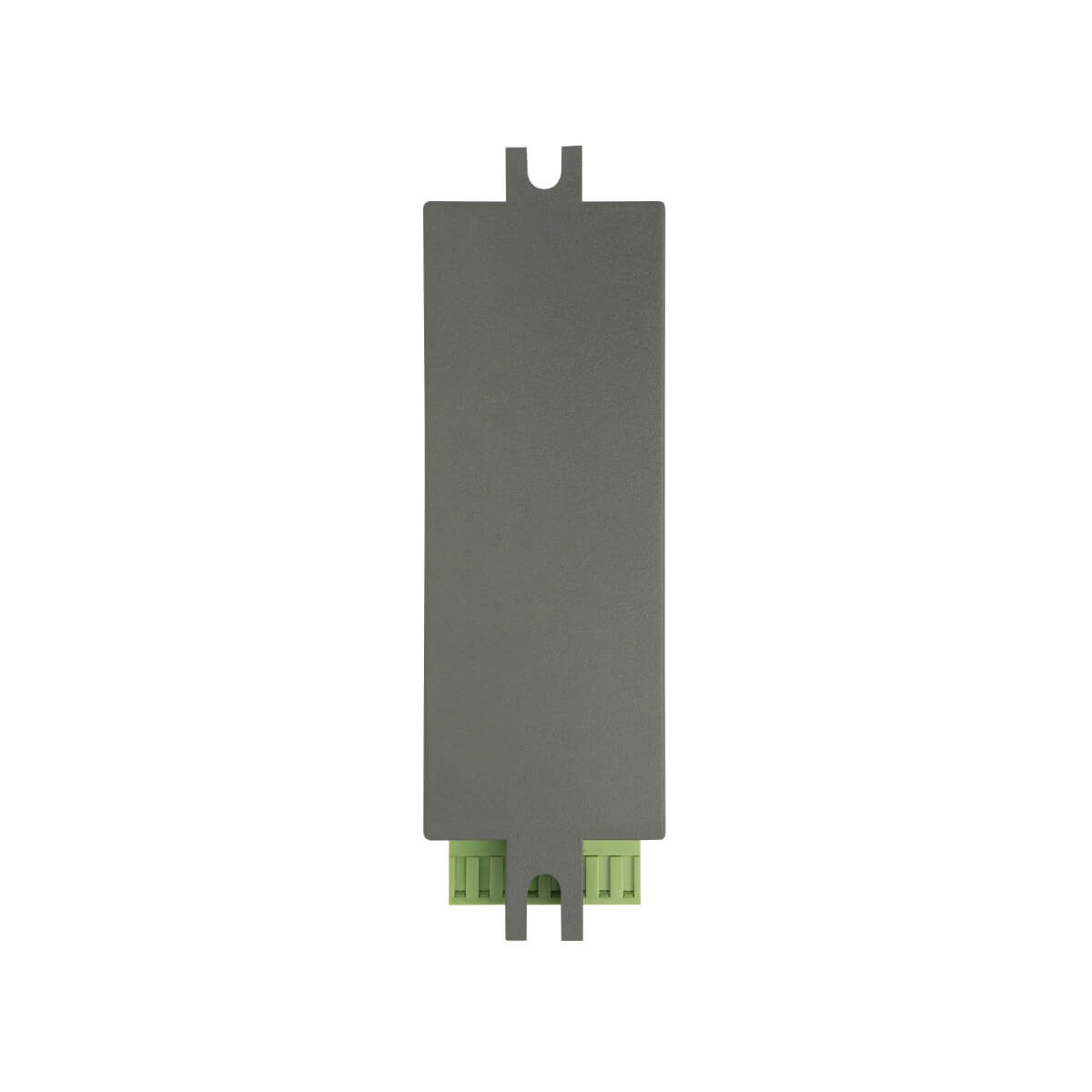

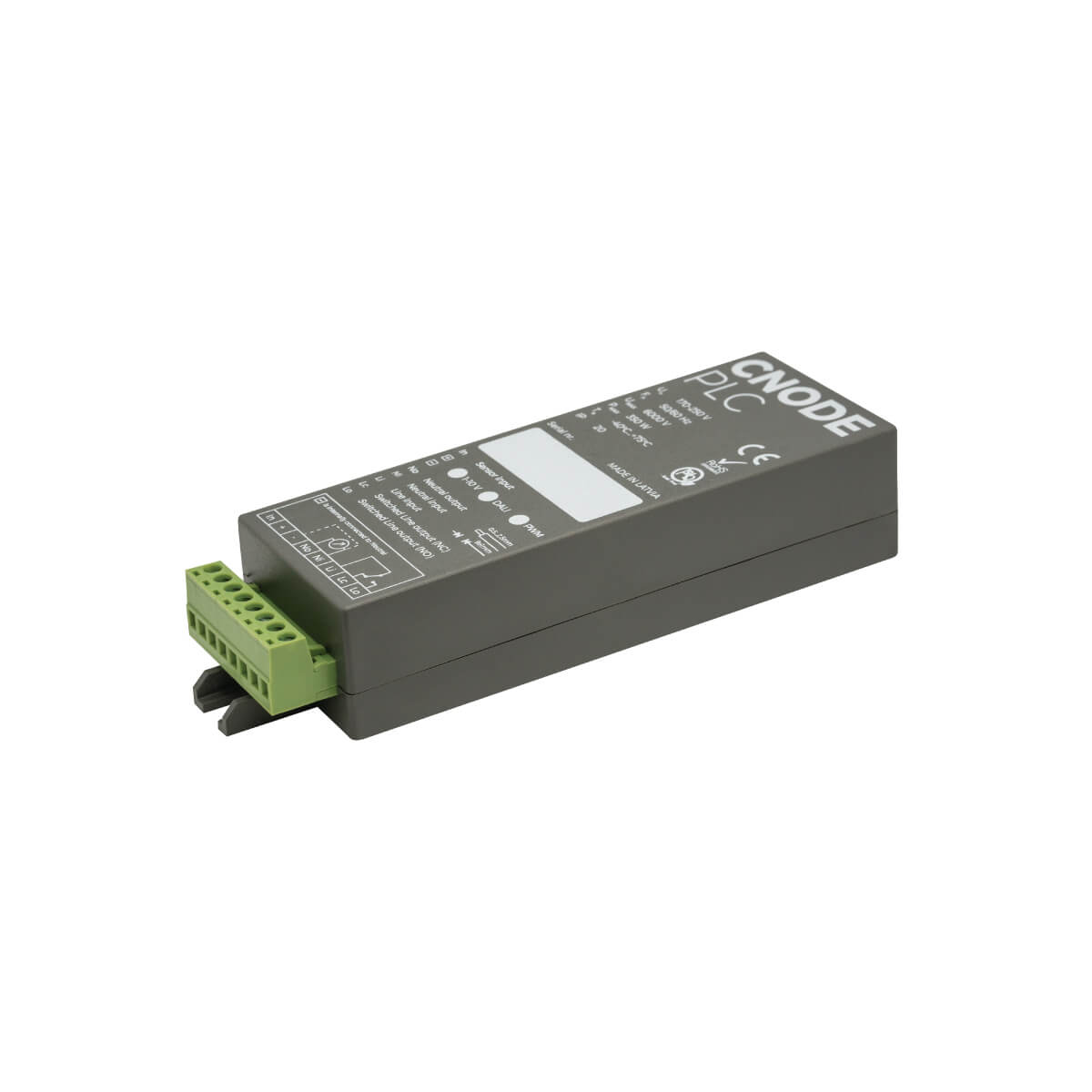

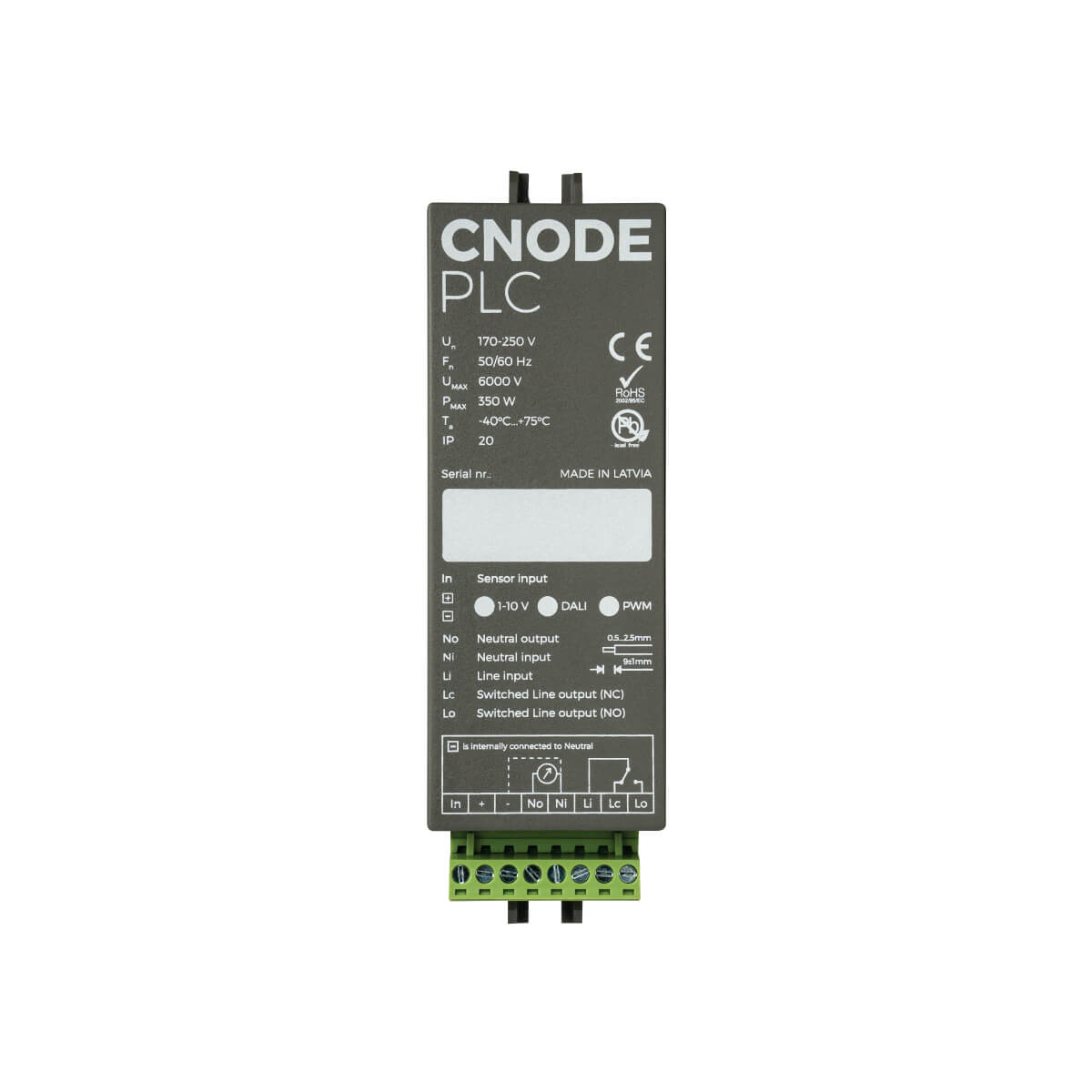

CNODE PLC is a reliable and robust smart streetlight outdoor luminaire controller that utilizes field-proven powerline communication technology. It is designed to withstand disturbances and provide high communication security in environments where radio interference is a concern. The device is an ideal solution for cities and municipalities looking to upgrade their traditional streetlight infrastructure to a smart and connected system with added security features.
SPECIFICATION
SPECIFICATION
Dimensions:Width 162mm, Height 30mm, Depth 50mm
Weight:100g
IP rating:IP 20
Power supply:230 VAC (-/+15%)
Frequency:50/60 Hz
Max load:500 W
Surge protection:3 kV / 6kV (optional)
Interfaces:DALI / 0-10V
Communication:PLC
Operating temperature:from -40 °C to +75 °C
FEATURES
FEATURES
• Utilization of field-proven powerline communication technology for reliable and robust performance
• Compliance with the Cenelec B standard for powerline communication
• Robust design to withstand disturbances and provide high communication security in environments with radio interference concerns
• Ideal solution for cities and municipalities looking to upgrade their traditional streetlight infrastructure to a smart and connected system with added security features
• Suitable for outdoor streetlight applications.
CERTIFICATES
CERTIFICATES
Directive 2014/35/EU Low Voltage Directive (LVD)
EN 62311:2008
EN 61347-1:2015 (IEC 61347-1)
EN 61347-2-11
EN 62368-1:2014/AC:2015
EN 61984:2009
Directive 2014/30/EU Electromagnetic compatibility(EMC)
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 61000-4-4:2013
EN 61000-4-5:2014
EN 61000-4-11:2014
EN 55015:2013+A1:2015
EN 62368-3:2020
EN 61547:2009
HD 60364-4-443:2016
EN 60529
EN 50102
Directive 2011/65/EU RoHS directive
Directive 2012/19/EU WEEE directive
How it works?

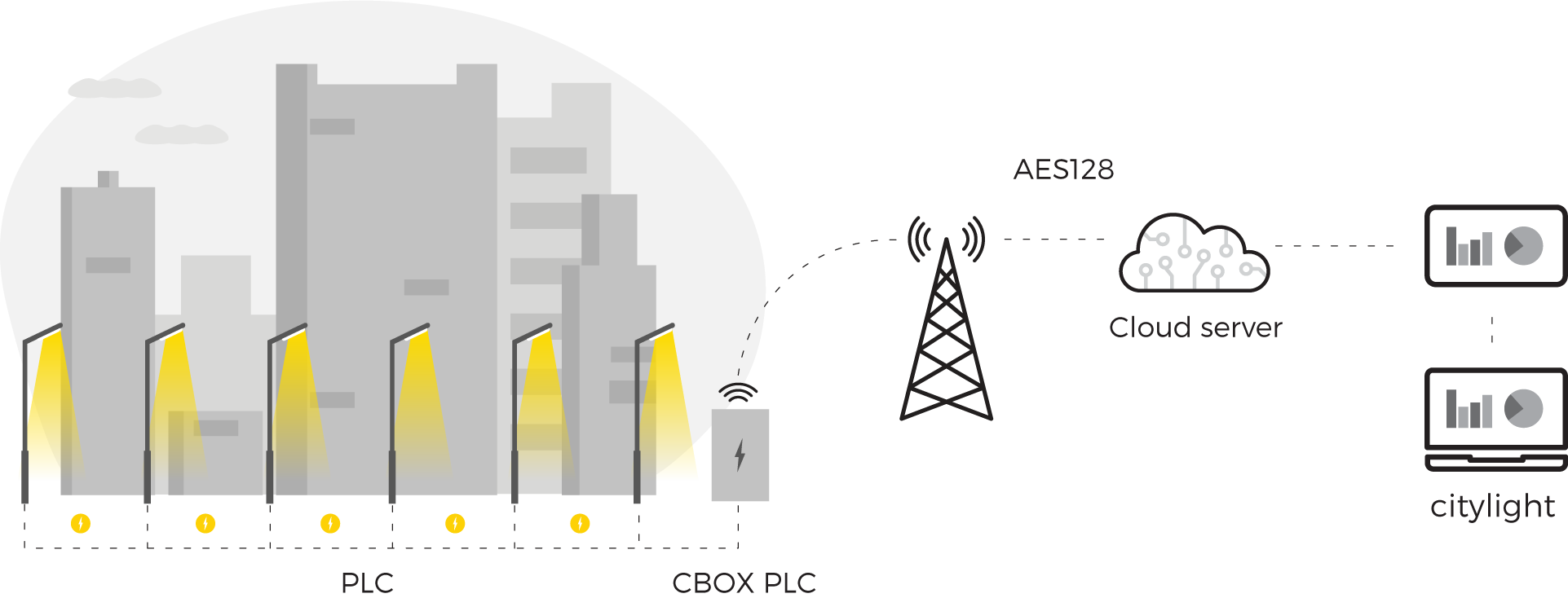

It is designed to withstand disturbances and provide high communication security in environments where radio interference is a concern, trough power lines in combination with CBOX PLC
How it works?
