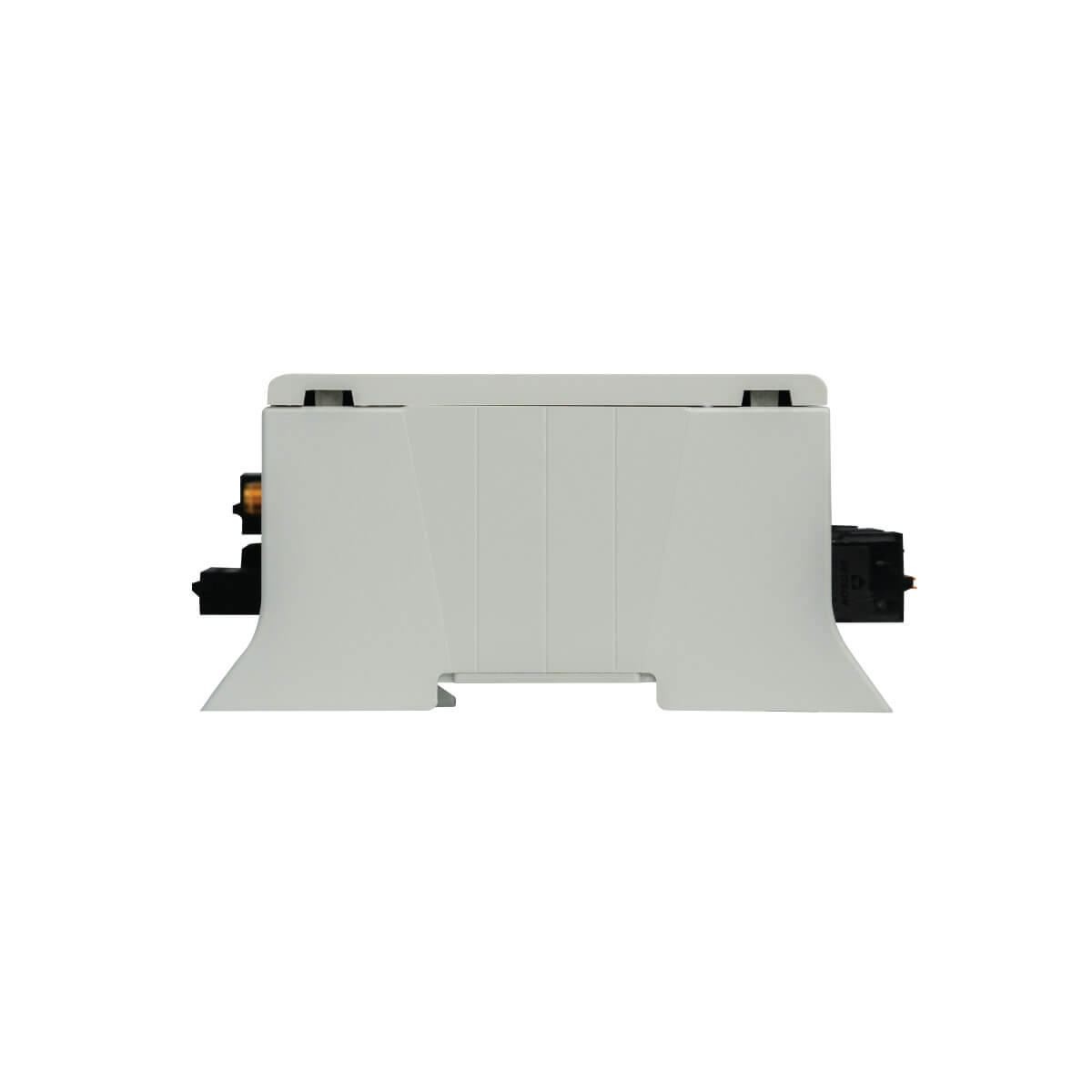

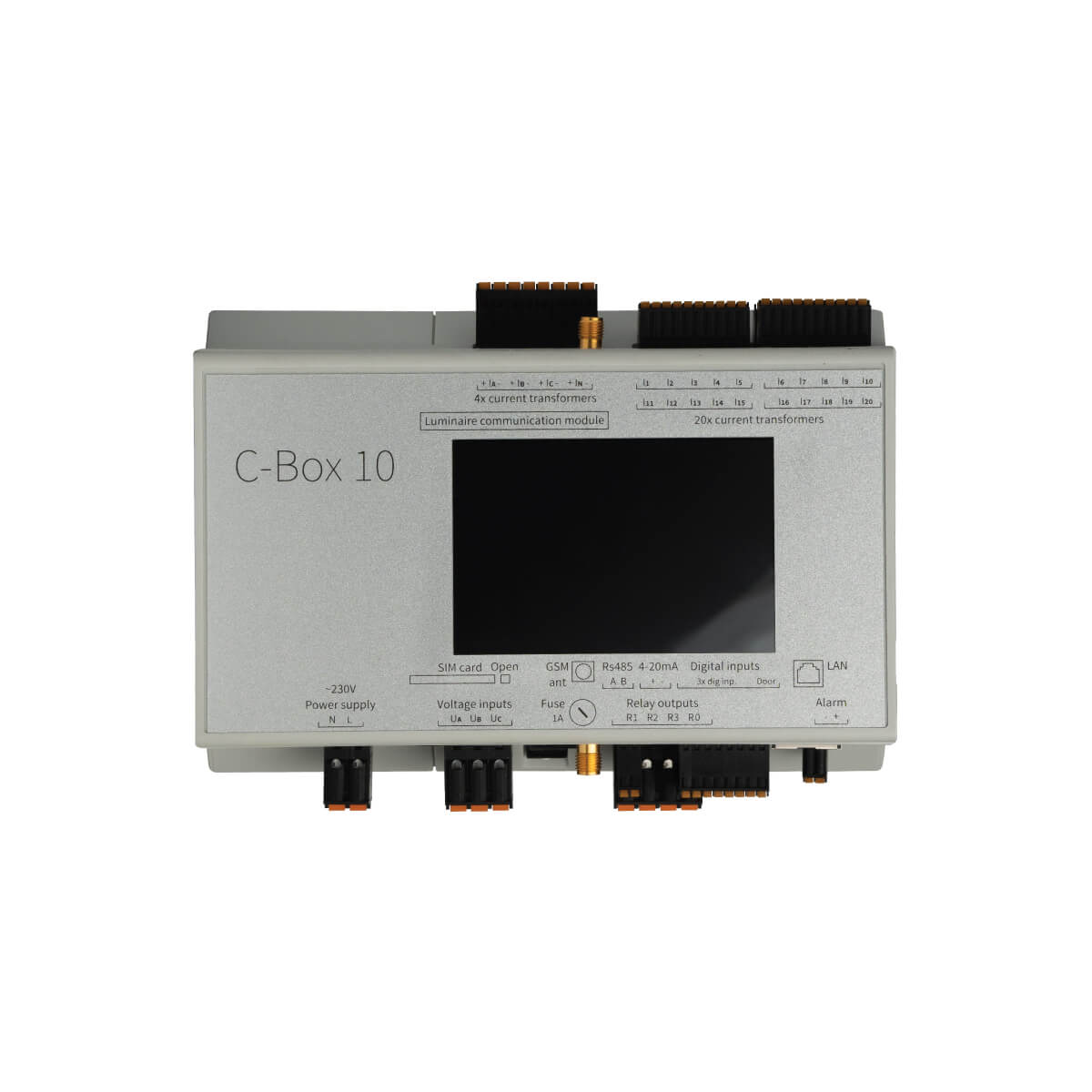

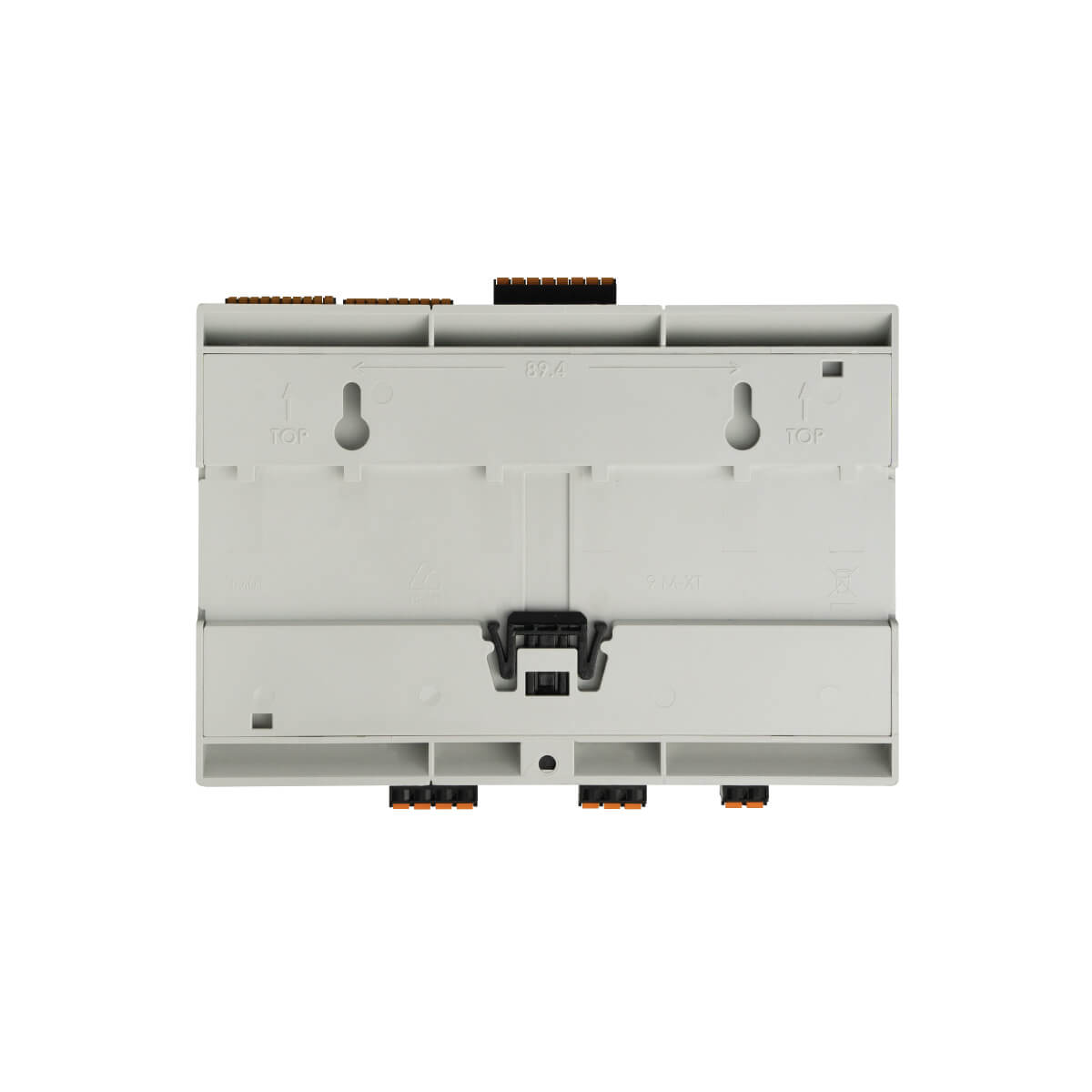

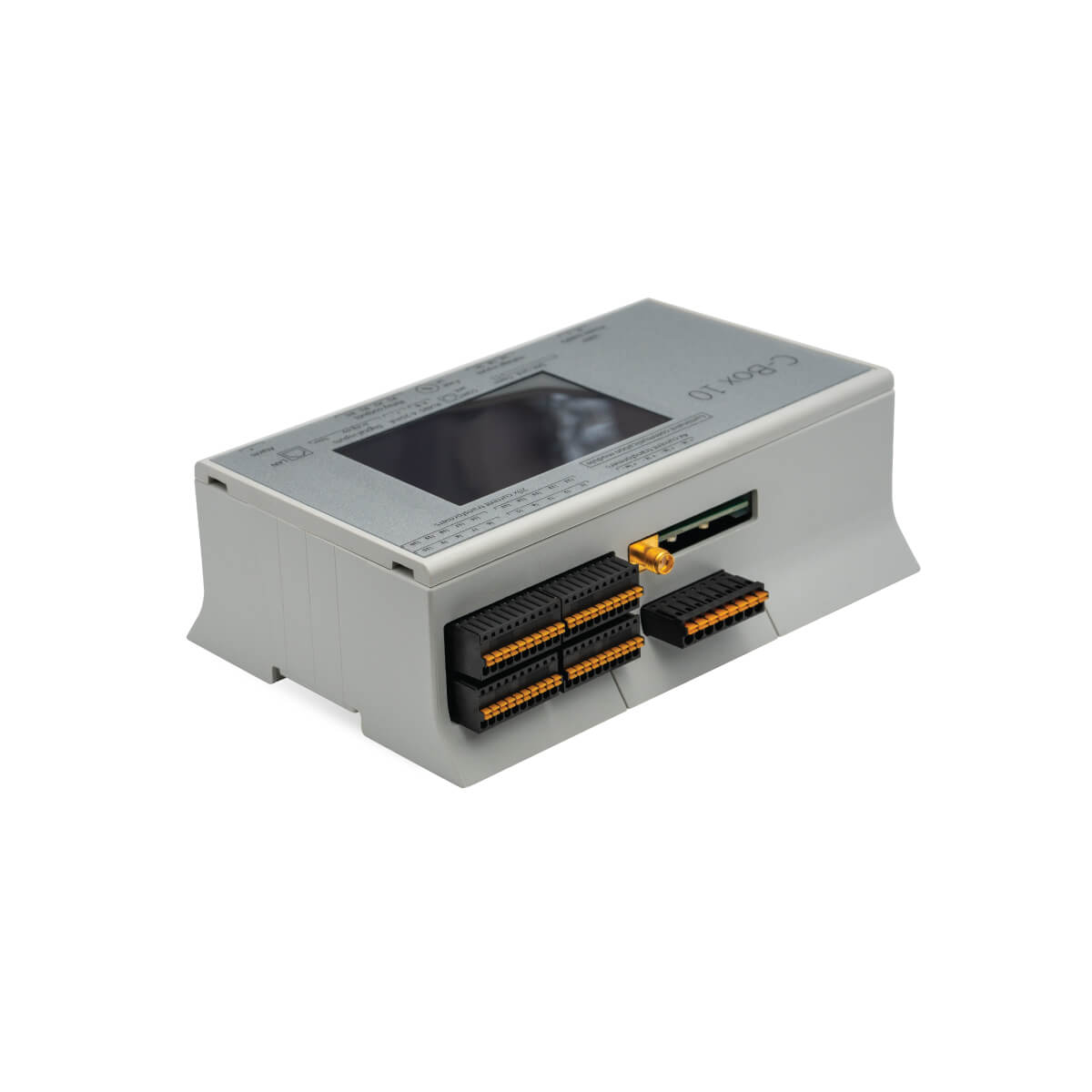

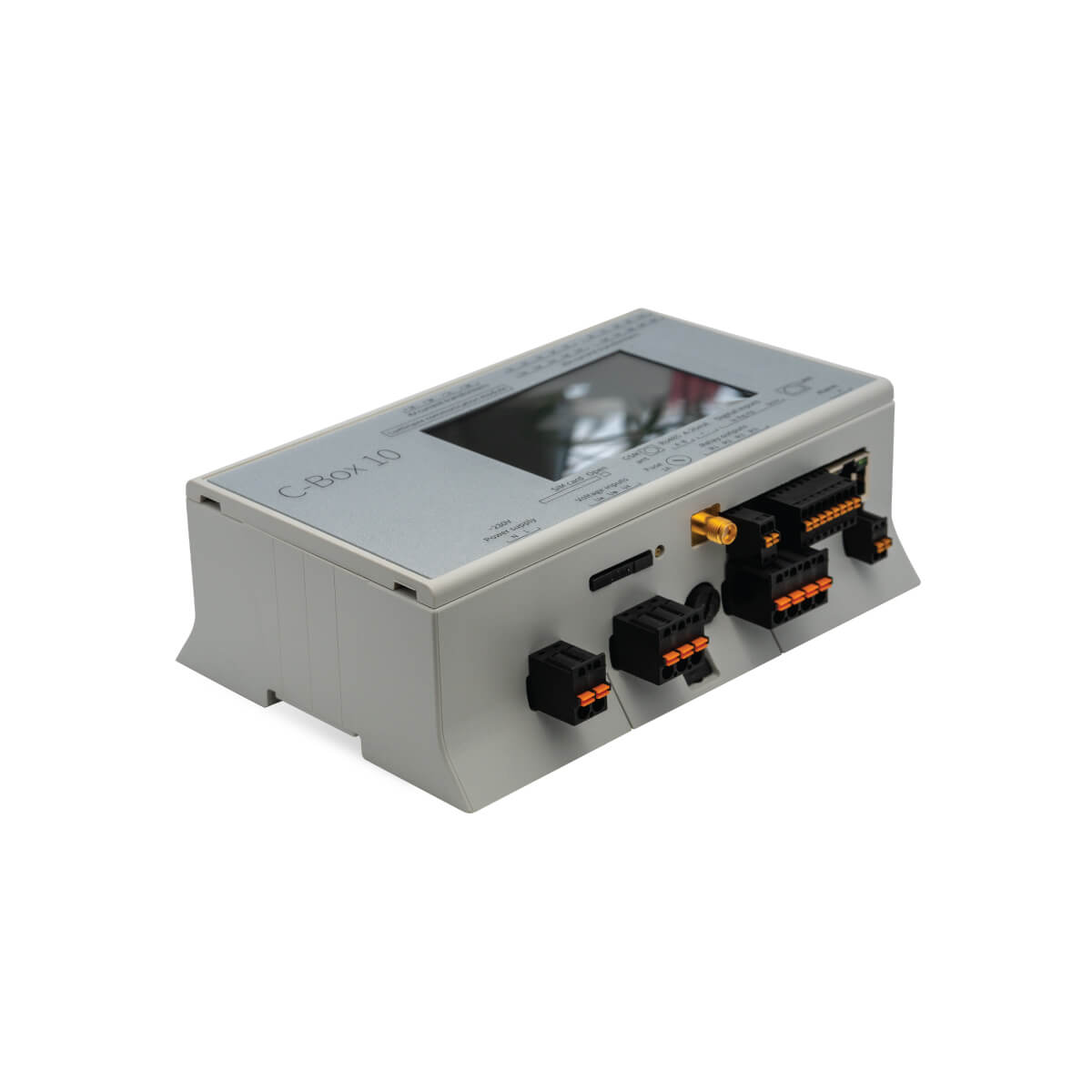

The C-Box is a device that turns traditional feeder pillars into smart ones. It has a built-in 4G communication module, dual SIM support and high-speed ethernet internet for remote monitoring and control. It also allows scheduling of relay remote control, monitoring of voltage and current, and easy touchscreen display for setup and troubleshooting. It also allows for monitoring of important parameters and can connect to various luminaires using PLC, RF, or DALI interfaces for flexibility in lighting control.
Dimensions:Width 160.2mm, Height 110mm, Depth 53.5mm
IP class:IP 20
Enclosure:ABS plastic, Electrical protection Classs II
Mounting:DIN rail 35mm
Operating temperature:from -40 °C to +85 °C
Power supply:230 VAC +/-15%
Frequency:50/60 Hz
Power consumption:5W
Surge protection:6 kV
Voltage measurments:3 inputs (0-350V)
Current measurments:4+20 inputs (type 0.333V)
Mobile network:2G/3G/4G
Ethernet:10-100 Mbps - TCP/IP (supports DHCP)
Ethernet connector:RJ45
Display:LCD TFT - 3.5 inch - Resistive touchscreen
Relay ouputs:3(default)/4(optional)
Analog input:4-20 mA
Serial Interface:RS485
Digital inputs:4 (Dry contact)
Fuse:1 A (changeable)
Alarm output:12 V
Luminaire communication module:none (default), RF, PLC, DALI
• Compact design allows for easy installation and integration into existing systems.
• Built-in LTE (4G) communication module enables remote monitoring and control of the device, even in areas without wired internet connectivity.
• Dual SIM support provides redundancy and improves reliability in case of network failure.
• High-speed Ethernet allows for real-time monitoring and control of the device, providing detailed and up-to-date information about the system.
• Up to 4 relay scheduled remote control allows for automated control of connected devices, reducing the need for manual intervention.
• 3 line voltage monitoring allows for early detection of potential issues, preventing damage to connected devices.
• Up to 20 line current measurement provides detailed information about the power consumption of connected devices, allowing for improved energy management.
• Built-in touchscreen display makes it easy to configure and diagnose the device, reducing the need for specialized technical skills.
• Multiple data inputs for measuring vital parameters allow for detailed monitoring and analysis of the system, providing valuable insights into the performance of connected devices.
• Compatibility with 3 types of add-ons for communication with addressable luminaires via PLC, RF, or DALI interfaces allows for easy integration with a wide range of existing systems and devices.
Directive 2014/35/EU Low Voltage Directive (LVD)
EN 62311:2008
EN 62368-1:2014/AC:2015
EN 60529
Directive 2014/30/EU Electromagnetic compatibility(EMC)
EN 301-489-1 V2.1.1
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 61000-4-2:2009
EN 61000-4-3:2006+A1:2008+A2:2010
EN 61000-4-4:2013
EN 61000-4-5:2014
EN 61000-4-6:2014
EN 61000-4-8:2010
EN 61000-4-11:2004
EN 301 489-3 V2.1.1
EN 55015:2013+A1:2015
EN 61547:2009
Directive 2014/53/EU Radio Equipment (RED)
EN 300 440 V2.1.1
EN 301 511 V12.5.1
EN 300 220-2 V3.1.1
Directive 2011/65/EU RoHS directive
Directive 2012/19/EU WEEE directive

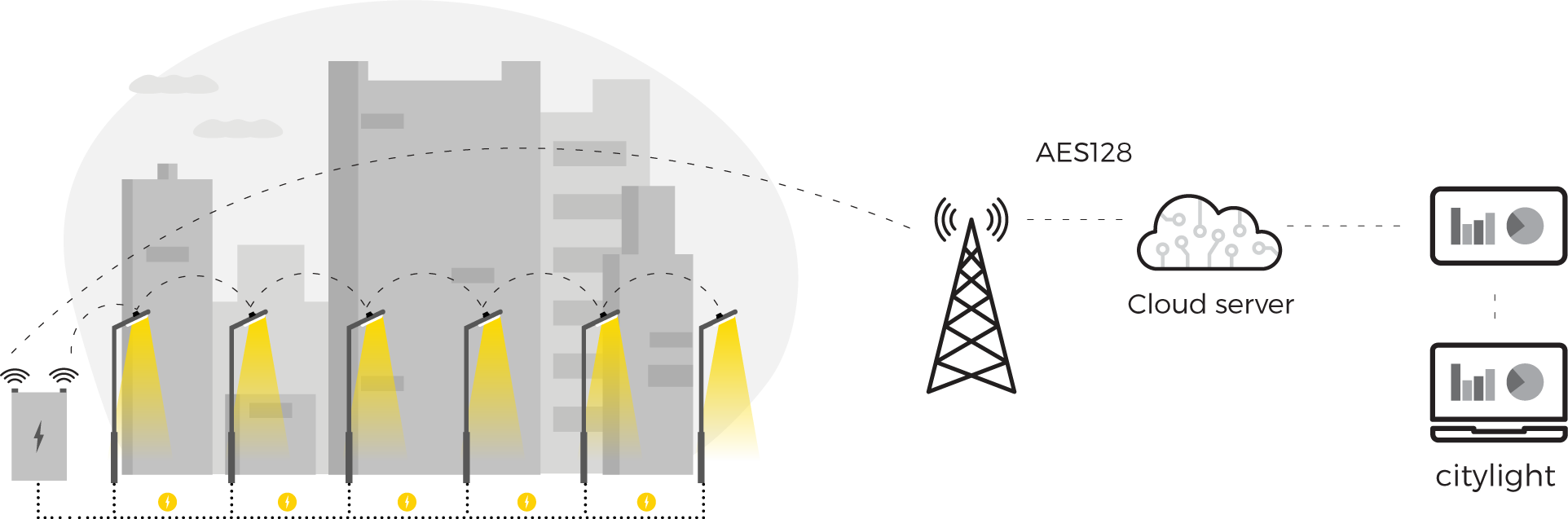

How it works?
How it works?
Additional features

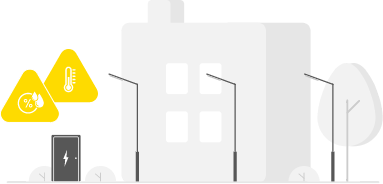

Humidity & Temperature
Humidity & Temperature
Monitor temperature and humidity to preserve feeder pillar equipment and ensure reliability.

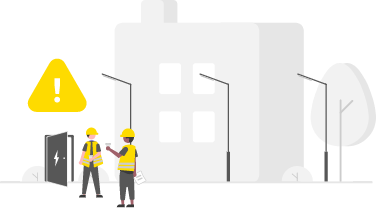

Door Sensor
Door Sensor
Keep track of when feeder pillar doors are opened or closed to enhance security and accountability.

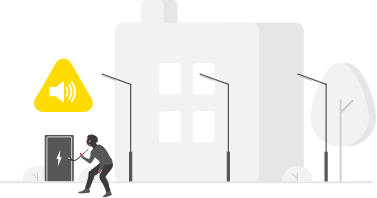

Alarm Siren
Alarm Siren
Alarm sirens provide a loud warning in case of unauthorised access to deter intruders

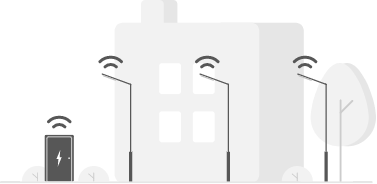

Gateway Modes
Gateway Modes
Enables communication with luminaire controllers via radio or power line communication.

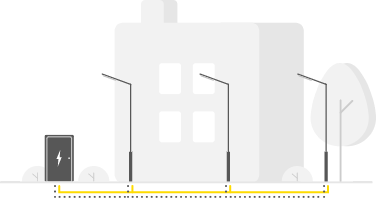

DALI Master
DALI Master
Centralized management and control of multiple DALI lighting points without outdoor controllers

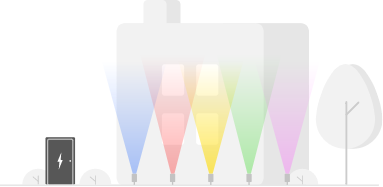

DMX control
DMX control
Remote control and scene scheduling of architectural and art lighting installations
