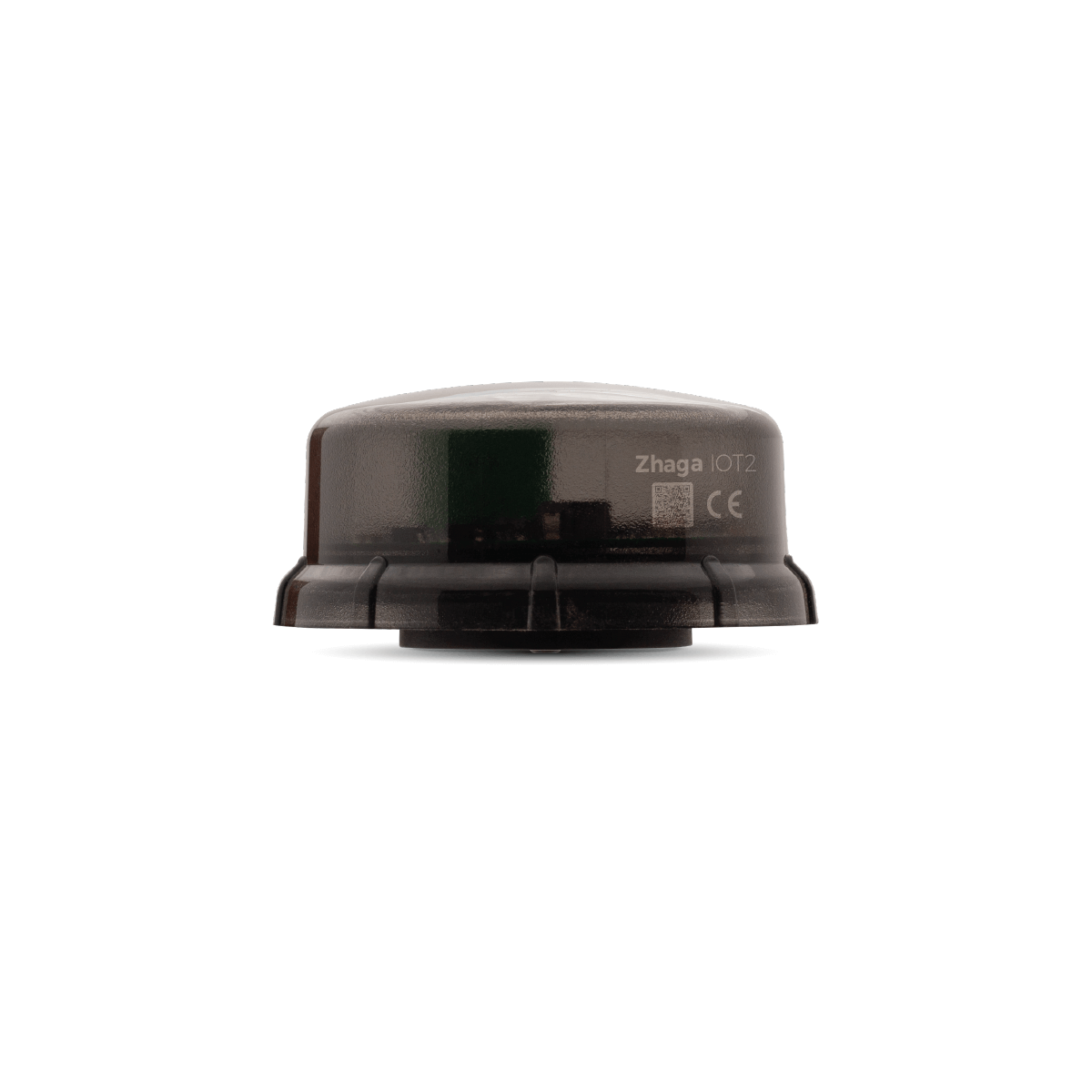

CNODE ZHAGA IOT2
 OVERVIEW The CNODE Zhaga IOT2 is a compact, low-cost smart lighting controller for outdoor luminaires. It features builtin 4G LTE connectivity and a global flat-rate eSIM, enabling remote streetlight control without extra SIM or gateway management. Supporting DALI2 D4i and the Zhaga Book 18 socket, it offers plug-and-play installation and reliable performance for smart city lighting. With open payload data and IOT industry-standard MQTT, it ensures easy integration into a wide range of smart city platforms.
SPECIFICATION
FEATURES • Compliance with industry standard Zhaga Book 18 socket
• Global 4G LTE coverage
• 5 years or 10 years data plan included
• Dali 2 D4i standard interface
• Open data payload
• Compact design
• MQTTS protocol
• Ambient light sensor (optional)
CERTIFICATES Directive 2014/35/EU Low Voltage Directive (LVD)
EN 62311:2008
EN 61347-1:2015 (IEC 61347-1)
EN 61347-2-11
EN 62368-1:2014/AC:2015
EN 61984:2009
EN 60529
Directive 2014/30/EU Electromagnetic compatibility(EMC)
EN 301-489-1 V2.1.1
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 301 489-3 V2.1.1
EN 301 489-52 V1.1.0
EN 55015:2013+A1:2015
EN 61547:2009
Directive 2014/53/EU Radio Equipment (RED)
EN 300 440 V2.1.1
EN 301 511 V12.5.1
EN 300 328 V2.1.1
EN 300 220-2 V3.1.1
Directive 2011/65/EU RoHS directive
Directive 2012/19/EU WEEE directive
DOWNLOADS |

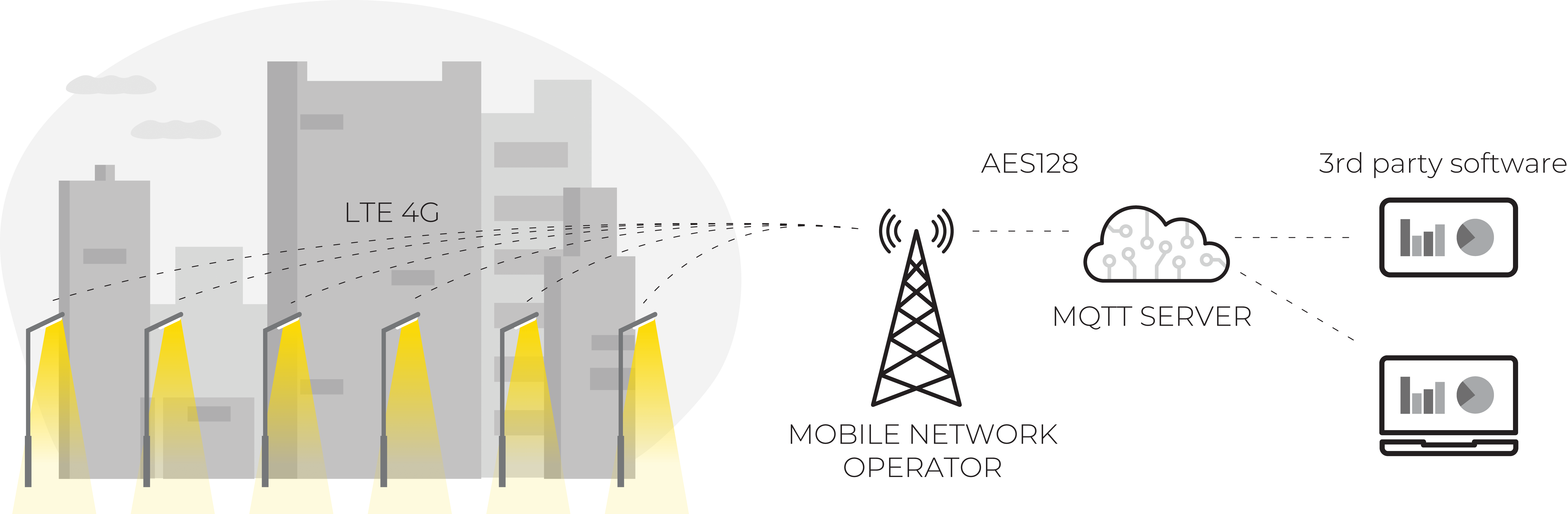

How it works?
|
